Aluminium Bronza Baffle & Tubesheet
B&Q manufacture Brass and Naval Brass tubesheets & Baffles on a CNC Machine center.
Share This Product:
  • description
  • Specifications

Aluminium Bronza Baffle & Tubesheet

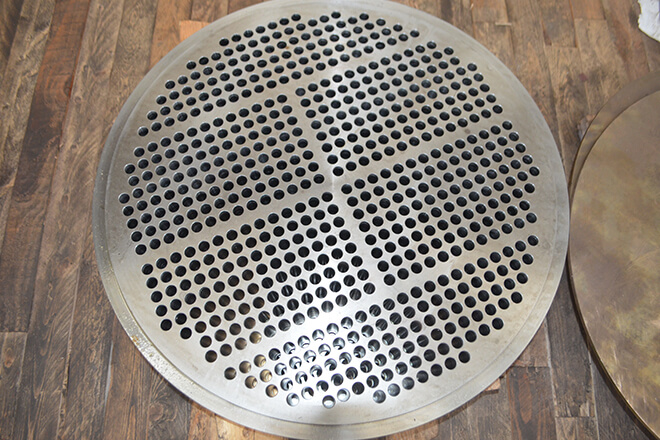

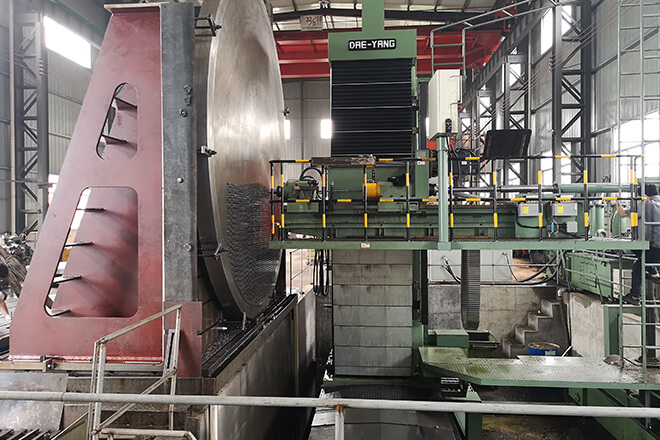

  • B&Q manufacture Brass and Naval Brass tubesheets & Baffles on a CNC Machine center. Since our facility is located next to a Brass rolling mill, we are able to recycle the scrap to the mill significantly reducing cost. (As about 40% of the tubesheet generally falls off as scrap).

  • We are able to offer tube sheets in other materials also but here we do not have the advantage of being able to recycle the scrap.

  • All forged products can be delivered in forged, proof-machines or fully-machined condition.

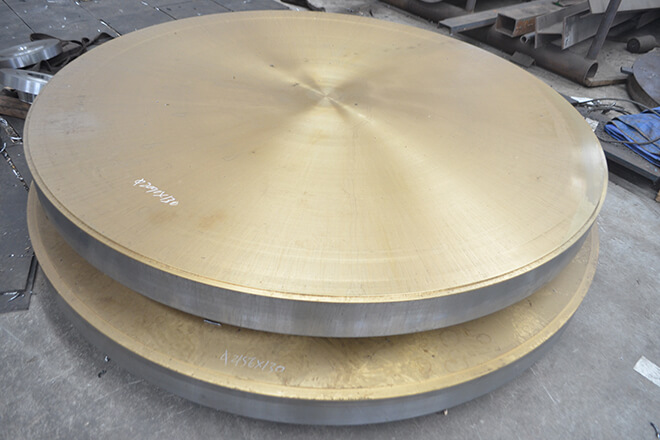

  • Discs forged up to 5000mm OD and over 500mm thick (depending on material)
  • including hole drilling for heat ex changer tube sheets
  • cladding by weld overlay with duplex, titanium and nickel alloys
  • Materials: Carbon steels, stainless steels, duplex steels, alloy steels, nickel alloys non-ferrous materials (Cu-Ni 90/10 & CU-Ni 70/30) and Titanium.
  • Disc maximum weight of 49 tons
  • Discs and tube sheets can be delivered in pre-machined and finished machined condition. Complete whole drilling is available.
  • All the following products are held in stock and produced to all major International Standards including EN, ASTM, ASME and NES780

ASME Specifications/ASTM Specifications

  • ASME SB171 C63000
  • ASTM B171 C61400
  • ASME SB171 C61400
  • ASTM B171 C46400
  • ASME SB171 C46400
  • ASTM B171 C71500
  • ASME SB171 C71500
  • ASTM B171 C70600
  • ASME SB171 C70600
  • ASTM B171 C63000
