Brass Tube

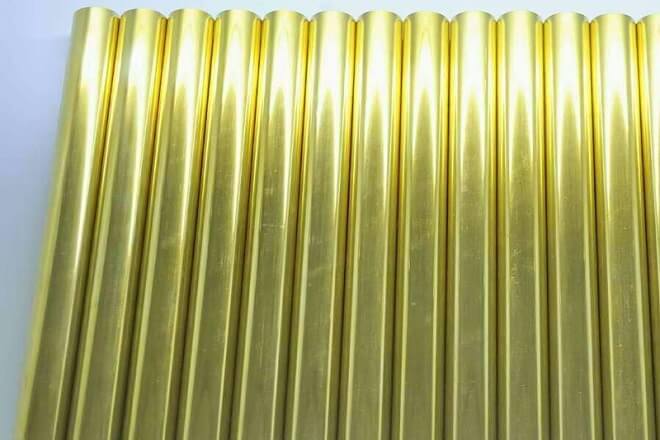

B&Q hold expertise in manufacturing and exporting an extensive range of Admiralty Brass Tubes, Admiralty Brass Pipes and Admiralty Brass Tubing. These are offered in different sizes, thicknesses, specifications and extensively used in petrochemical, power plant and varied other industries. In our state-of-the-art manufacturing unit, these Admiralty Brass Tubes/Pipes are machined as per the defined industry standards and offered at market leading prices.

Share This Product:

Product Application Areas
Specifications

Heat Exchangers
Refineries
Power Plants
Desalination Plants
Ship Building & Ship Repairs
Condensers
Ferrules
Distillers

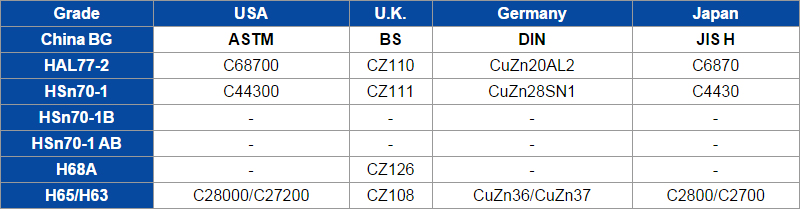

Material Brand

Standard	BS 2871 PART3	ASTM B 111	DIN 1785	NFA 51 102	JIS H3300	IS 1545
Symbol	CZ 111	C 44300	CuZn28Sn1	CuZn29Sn1	C 4430	CuZn29Sn1As
Cu	70.0-73.0	70.0-73.0	70.0-72.5	70.0-73.0	70.0-73.0	70.0-73.0
Sn	1.0-1.5	0.9-1.2	0.9-1.3	0.9-1.2	0.9-1.2	1.0-1.5
Pb	0.07	0.07	0.07	0.07	0.07	0.07
Ni	-	-	0.1	-	-	-
Fe	0.06	0.06	0.07	0.06	0.06	0.06
Zn	REM'DER	REM'DER	REM'DER	REM'DER	REM'DER	REM'DER
As	0.02-0.06	0.02-0.06	0.02-0.035	0.02-0.06	0.02-0.06	0.02-0.06
P	-	-	0.01	-	-	-
Total Impurities Max.					-
	0.03	-	0.1	0.3	-	0.3
Condition	M	61	F36	-	-	O
	TA	-	F32	-	O	TA
	O	-	-	-	-	D
Yield Strength N/MM2	-	-	140-220	-	-	-
	-	105	100-170	-	-	-
Tensile N/MM2 Minimum	-	310	360	-	-	375 Mpa Max.
	-	-	320	-	314Min.	340 Mpa Min.
	-	-	-	-	-	385 Mpa Min.
Elng'Tion Percent (%) Minimum	-	-	45Min.	-	-.	-
	-	-	55Min.	-	30 Min.	-
Hardness HV5 -	150Min	-	-	-	-	80 Max.
	85-105	-	-	80-120	-	80-105
	75Max.	-	-	-	-	130 Min.
Grain Size mm (75X)	0.05Max.	0.010-0.045	-	0.010-0.045	0.010-0.045	0.010-0.04
