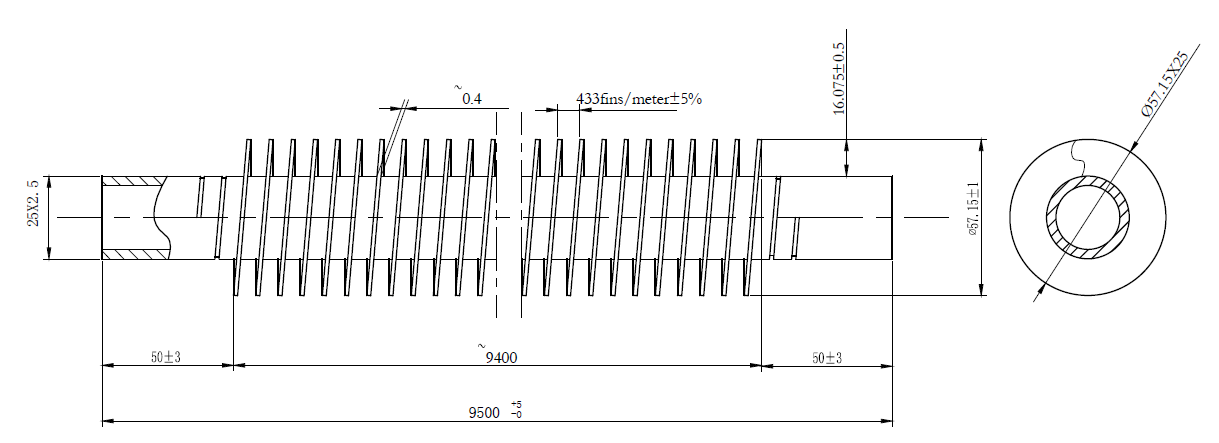

Drawing(PO4054).pdf

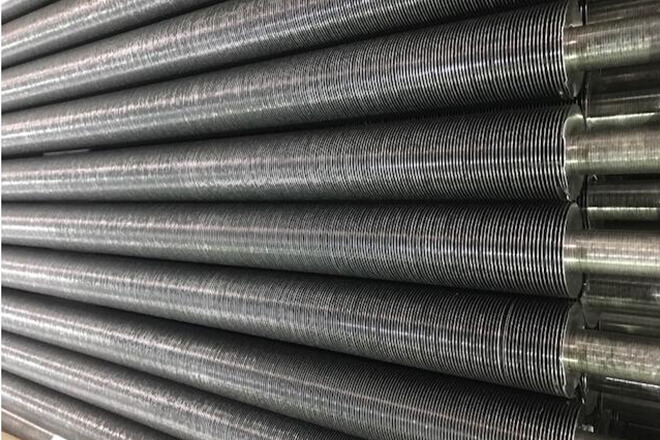

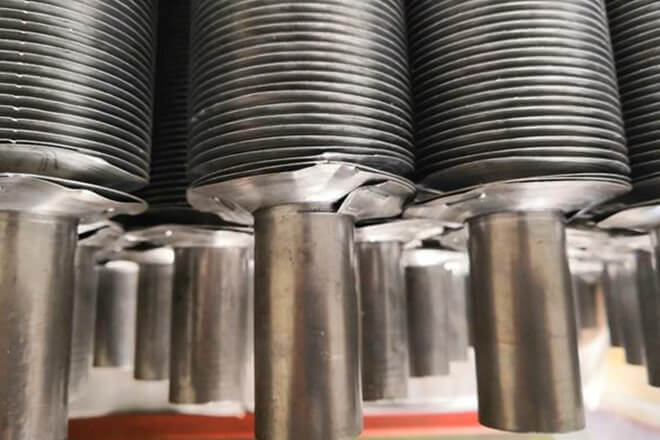

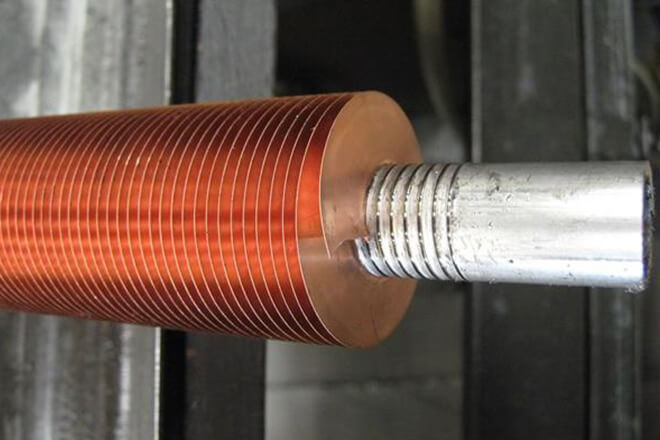

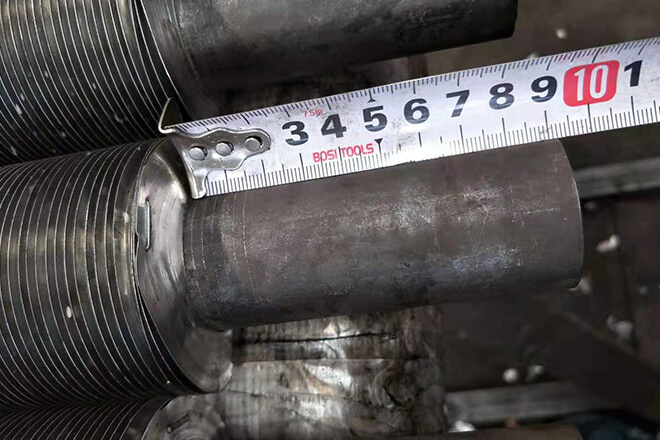

“G” Embedded Fin Tube, G-fins (grooved fins)，is widely used in petrochemical, electric power, building heating, air cooler/heater and food industry plant protein powder. The fin strips are mechanically forged into the machined grooves and are securely locked into place by back filling with the base tube material. The fins are made of aluminum or copper. “G” Embedded Finned Tube is suitable for high working temperatures up to 400°C.
|
Tube O.D.: |
19.0 to 51.0 (mm) |
3/8” to 2” |
|
Tube Length: |
≤ 19,810 (mm) |
≤ 65’ |
|
Fin Thickness: |
0.3 to 0.5 (mm) |
.012” to .02” |
|
Fin Height: |
10.0 to 16.0 (mm) |
.394” to .630” |
|
Fin Pitch: |
100 to 433 FPM |
3 to 11 FPI |
|
Fin Type: |
G |
|
|
Fin Material: |
·Aluminum |
|
|
Tube Material: |
·Carbon Steel ·Stainless Steel |
|
|
* This table is used as a general guide to our capabilities; please call us for any other customized cases. |
||
