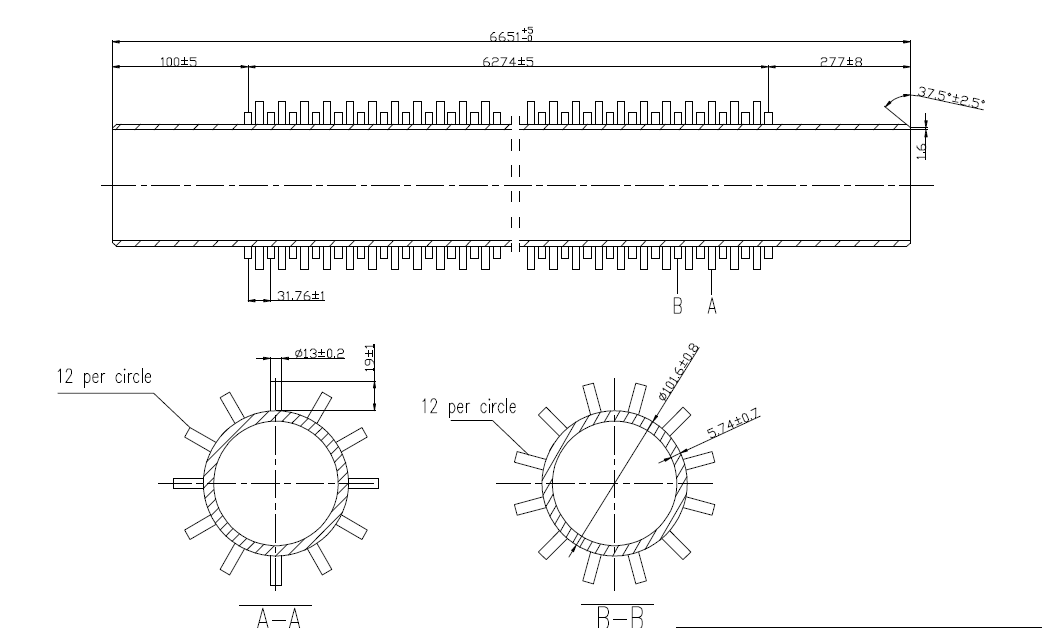

Drawing for PO4083 Rev..pdf
|

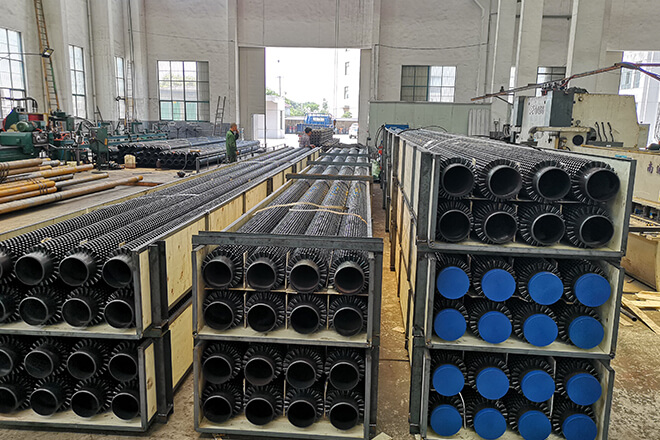

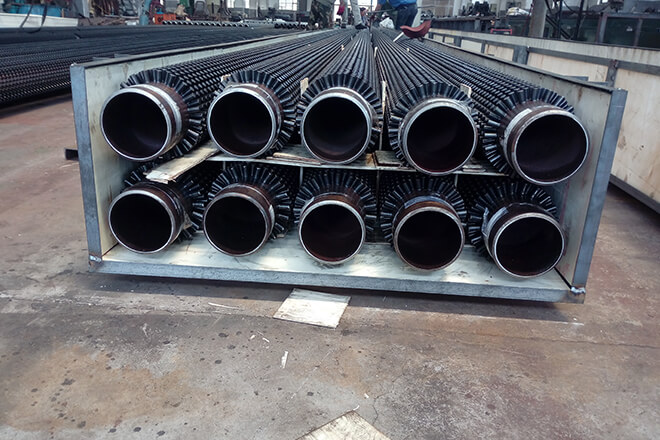

Tube O.D.: |
25 to 273 (mm) |
1” to 10” (NPS) |
|
Tube Length: |
≤ 25,000 (mm) |
≤ 82’ |
|
Stud OD: |
6 to 25.4 (mm) |
.23” to 1” |
|
Stud Height: |
10.0 to 35.0 (mm) |
.4” to 1.38” |
|
Stud Spacing: |
8 to 30 (mm) |
0.3” to 1.2” |
|
Stud Shape: |
Cylindrical, Elliptical, Lens type |
|
|
Stud to Tube Surface Angle: |
Vertical or Angular |
|
|
Stud Material: |
·Carbon Steel ·Stainless Steel |
|
|
Tube Material: |
·Carbon Steel ·Stainless Steel |
|
|
* This table is used as a general guide to our capabilities; please call us for any other customized cases. |
||
