- 1.Appearance Inspection
- 2.Dimensional Inspection
- 3.Chemical Composition Testing
- 4.Mechanical Properties Testing
- 5.PWHT (Solution Annealing) on Bending area + 300mm straight length at least after Bending
- 6.100% Hydrostatic test after Bending
- 7.According to client’s requirement…
U Tube
List
U Tube
U-tubes are commonly used to exchange heat in a process
fluid with a large heat sink. We can also supply more
complex and individual tube and pipe bending for a wide
range of applications such as Water cooling panel, spiral
radiant coils outside diameter up to 73 mm.
|
Tube O.D.: |
16 to 73 (mm) |
3/8” to 2-1/2” (NPS) |
|
Tube Thickness: |
1.5 to 10 (mm) |
.06” to .04” |
|
Tube Length: |
≤ 18,500 (mm) |
≤ 60.7’ |
|
Tube Material: |
·Stainless Steel · Copper & Copper Alloy |
|
|
* For customized size please contact us. |
||

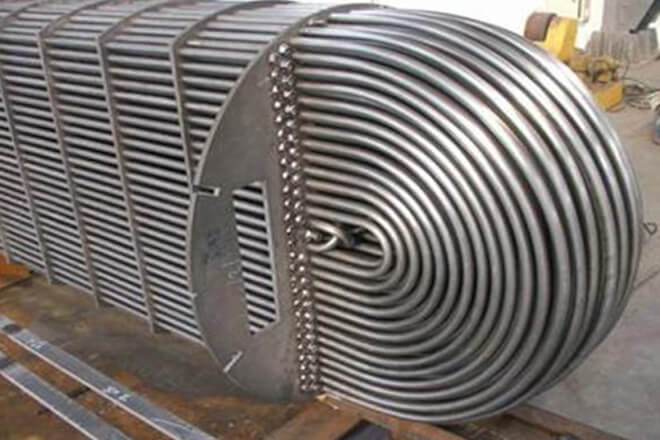

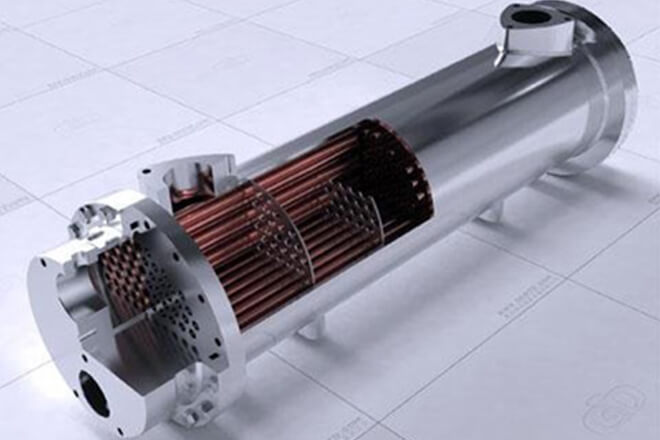

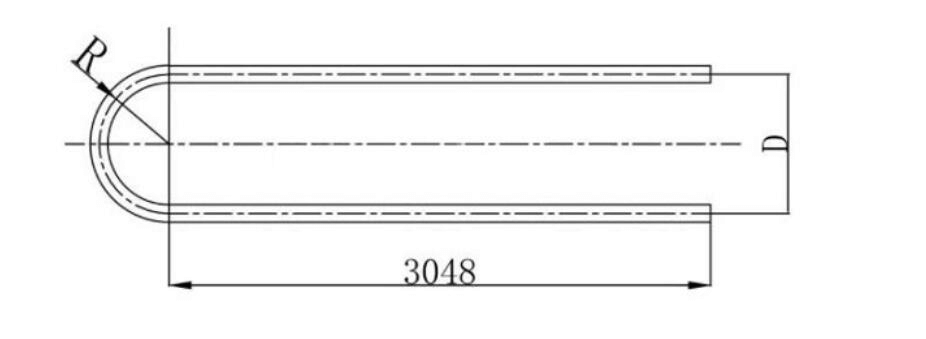

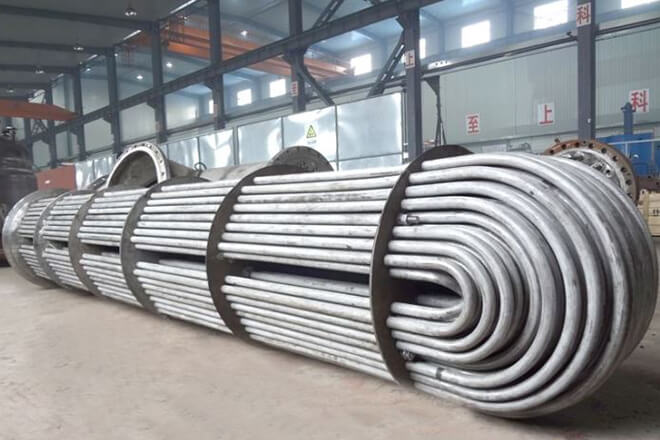

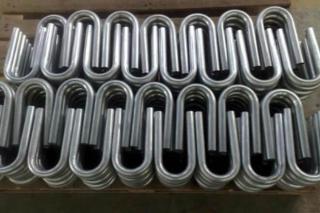

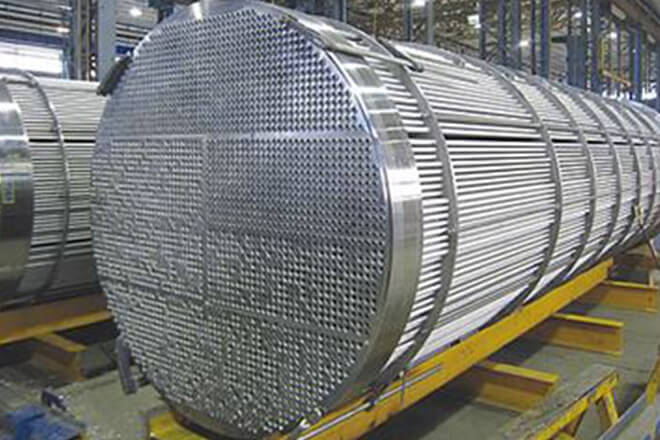

Reference drawing & photoe：
