L LL & KL Fin Tube

“L” fin tubes, “LL”(DL) fin tubes, “KL” fin tubes (knurled fin tubes) (with aluminum fins) Fins: Aluminum ASTM B209 Al 1060; ASTM B209 Al 1100, 1050A..

Share This Product:

description
Specifications

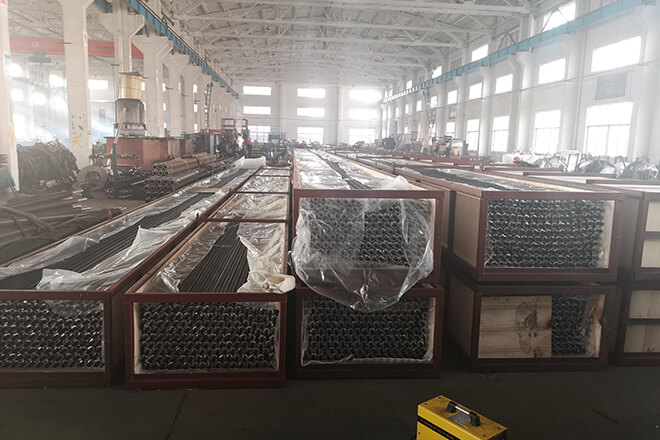

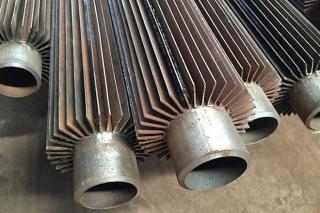

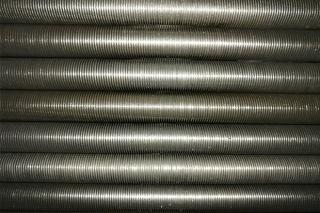

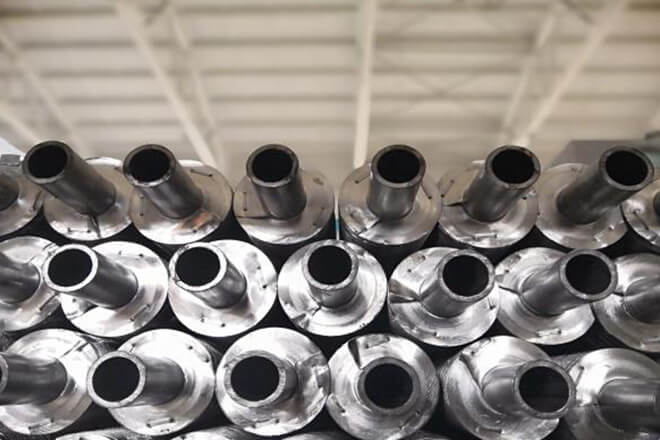

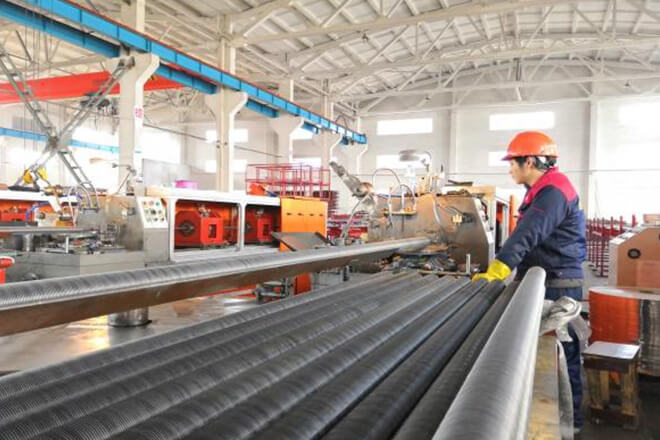

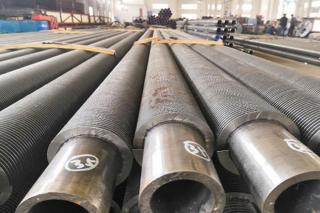

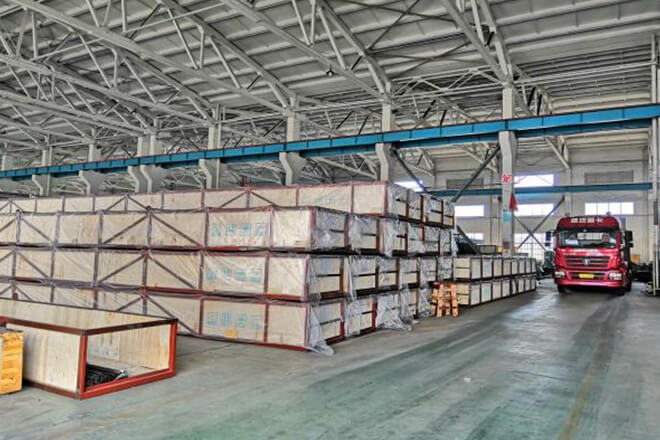

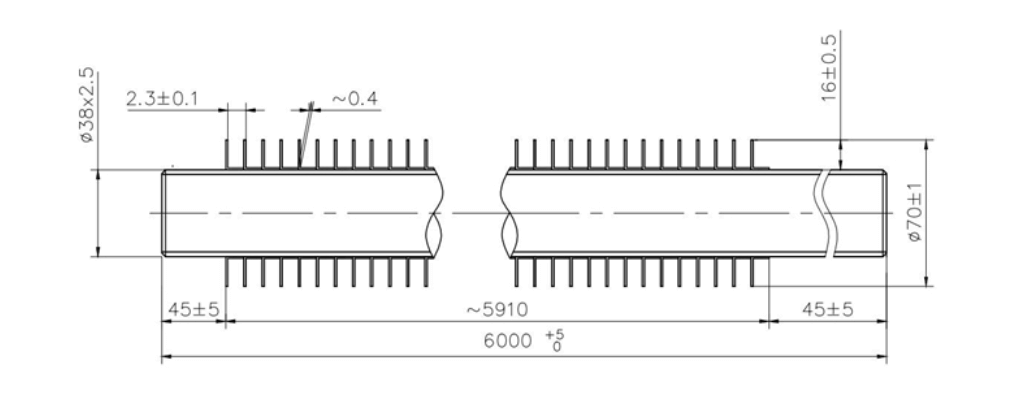

Reference drawing & photoes:

Fields Of Application

Petroleum, chemical and petrochemical process industries
Steel industry: blast furnace and converter systems
Gas treatment
Power generation: steam turbine exhaust condensing
Contact condensing with cooling of circulating condensate
Fossil and nuclear power plants
Air conditioning (Freon, ammonia, propane)
Incineration of household refuse
Compressor coolers, etc.

Tube O.D.:	19.0 to 51.0 (mm)	3/8” to 2”
Tube Length:	≤ 19,810 (mm)	≤ 65’
Fin Thickness:	0.3 to 0.5 (mm)	.012” to .02”
Fin Height:	10.0 to 16.0 (mm)	.394” to .630”
Fin Pitch:	100 to 433 FPM	3 to 11 FPI
Fin Type:	“L” , “LL”, “KL”
Fin Material:	·Aluminum ·Copper
Tube Material:	·Carbon Steel ·Stainless Steel ·Copper ·Copper Nickel ·Titanium
* For customized size please contact us.
