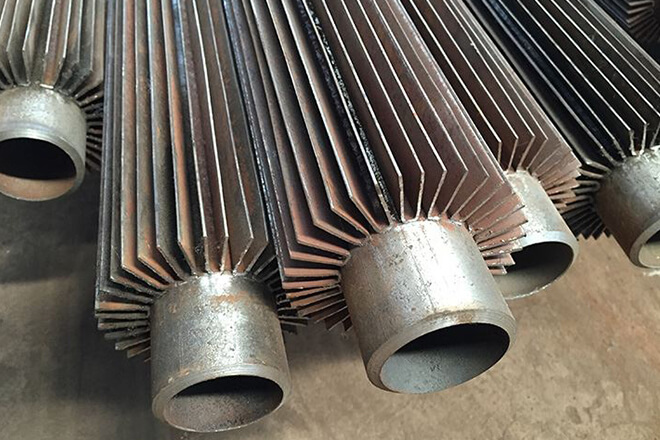

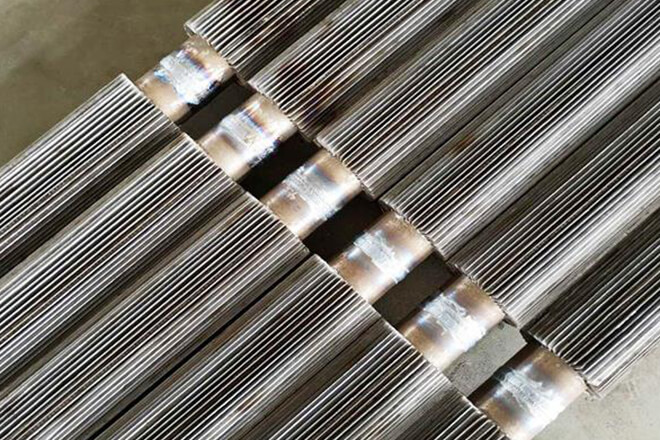

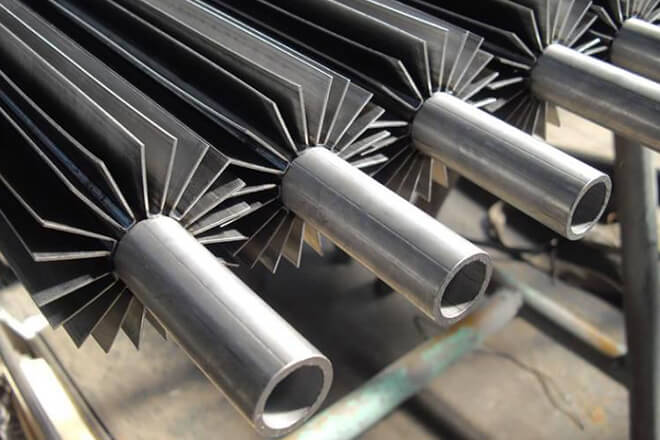

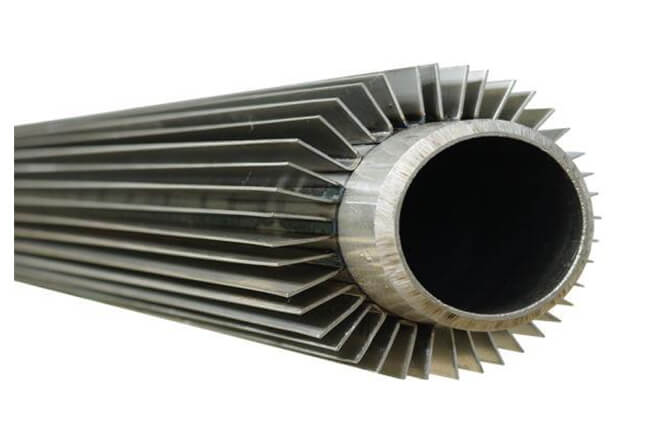

Longitudinal fin tubes longitudinal fin, in the form of a U-shaped fin channel, is resistance welded along the tube's longitudinal axis. The fin strip is first formed into a U-shaped channel, such that each leg of the U will form a fin. The channels are cut to the appropriate length and then oriented along the length of the tubes (pipes) and resistance welded in place.
|
Tube O.D.: |
12.0 to 273.0 (mm) |
3/8” to 10” (NPS) |
|
Tube Length: |
≤ 12000 (mm) |
≤ 39’ |
|
Fin Thickness: |
1.0 to 1.50 (mm) |
.04” to .06” |
|
Fin Height: |
5 to 25 (mm) |
.2” to .98” |
|
Fin Q’ty: |
1U to 36U |
1U to 36U |
|
Fin Type: |
“U” |
|
|
Fin Material: |
·Carbon Steel ·Stainless Steel |
|
|
Tube Material: |
·Carbon Steel ·Stainless Steel |
|
|
* For customized size please contact us. |
||
